LED CENTER BASKET TROFFER LUMINAIRE

SIZE 2X2, 2X4
WATT 24W, 30W, 36W, 24W, 36W, 45W

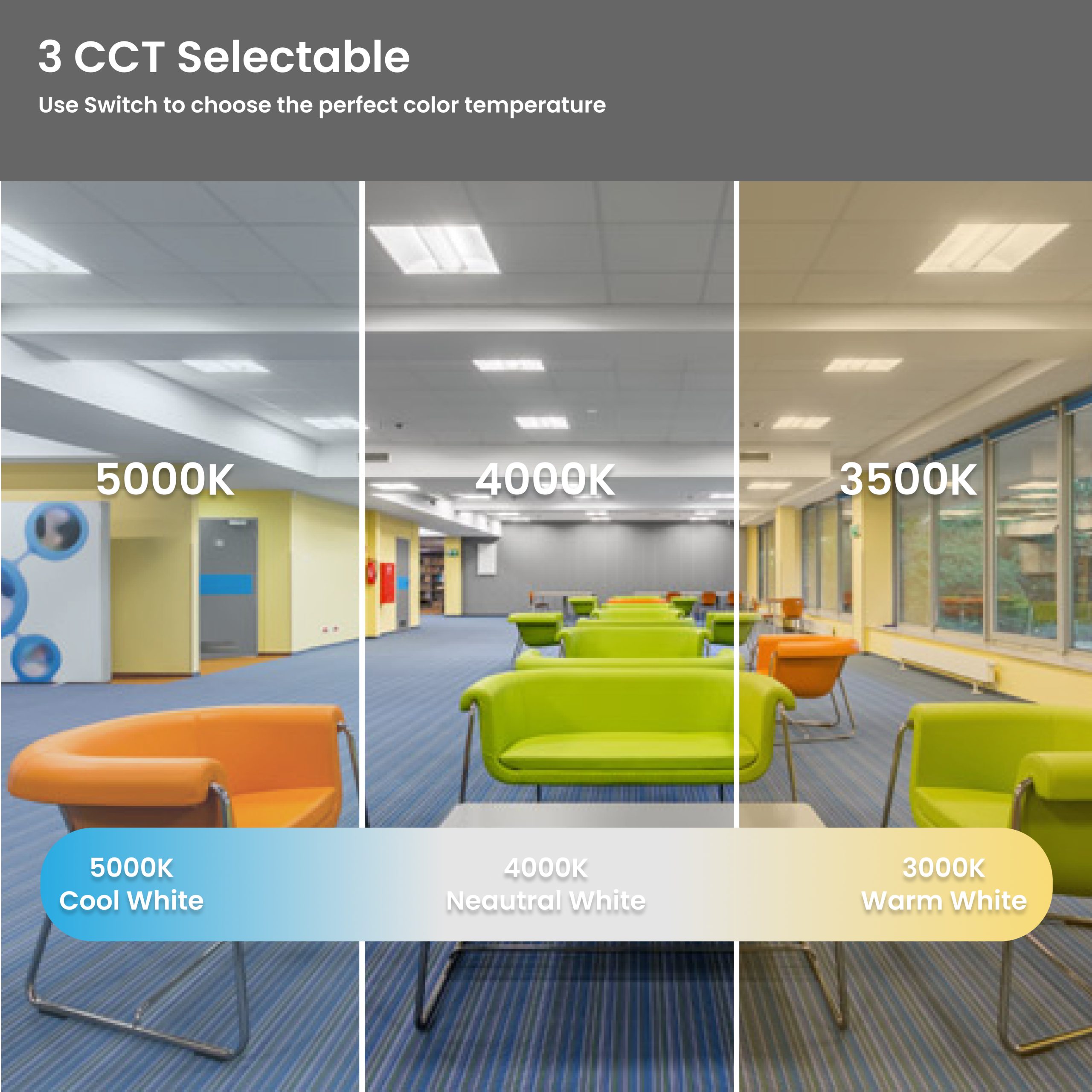

CCT 3500K / 4000K / 5000K

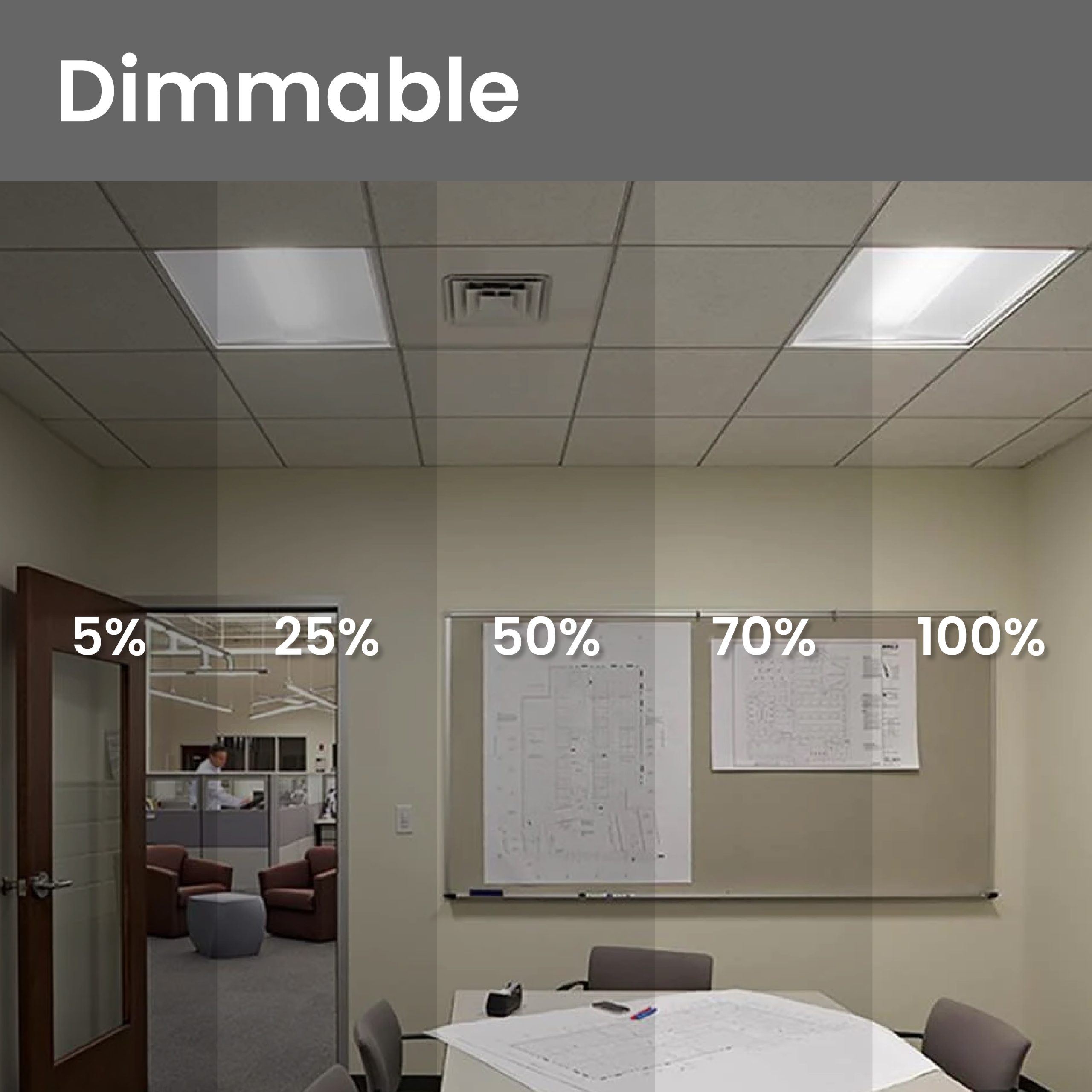

DIMMABLE 0-10V
CRI Ra>80
LUMINOUS EFFICIENCY(Lm/W) 130 lm/w
BEAM ANGLE 120O
INPUT VOLTAGE 120-277 VAC
OPERATING TEMPERATURE -40OC ~ 50OC
LIFE SPAN 50,000+ Hrs

Description

Schaezer presents the LED 3 Color Tunable Center Basket Troffer, an advanced lighting solution designed for versatile applications in various settings.

The LED 3 Color Tunable Center Basket Troffer features a high-quality isolated driver, 0-10V dimming capability, and flicker-free operation. Its heavy-duty die-cast aluminum body is fully sealed, making it dirt and bug-proof. With an input voltage of 120-277 VAC, this troffer offers color temperatures of 3500K, 4000K, and 5000K, a luminous efficacy of 130 Lm/W, and a CRI of Ra>80. It is dimmable with a 0-10V system, has a beam angle of 120°, operates in temperatures ranging from -40°C to 50°C, and has a lifespan of over 50,000 hours.

Ideal for various office spaces, schools, shopping malls, supermarkets, retail shops, hospitals, laboratories, and dust-free workshops, the LED 3 Color Tunable Center Basket Troffer provides efficient and reliable lighting solutions.

This LED troffer is backed by a 5-year limited warranty and complies with ETL Listings, ensuring it meets stringent safety and performance standards. It is rated for both damp and dry locations, guaranteeing durability and peace of mind in diverse environments.

Application

These lights apply in various types of o­ce spaces and schooling environment Commercial includes lighting shopping malls, supermarkets, retail shops, etc. Other applications such as hospitals, laboratories and dust-free workshops.

Quick Ship:

TK-CBT4-22-24W-T-DUV-(3500K-4000K-5000K)[EM,MS,BM,Blank]
TK-CBT4-22-30W-T-DUV-(3500K-4000K-5000K)[EM,MS,BM,Blank]
TK-CBT4-22-36W-T-DUV-(3500K-4000K-5000K)[EM,MS,BM,Blank]
TK-CBT4-24-24W-T-DUV-(3500K-4000K-5000K)[EM,MS,BM,Blank]
TK-CBT4-24-36W-T-DUV-(3500K-4000K-5000K)[EM,MS,BM,Blank]
TK-CBT4-24-45W-T-DUV-(3500K-4000K-5000K)[EM,MS,BM,Blank]
