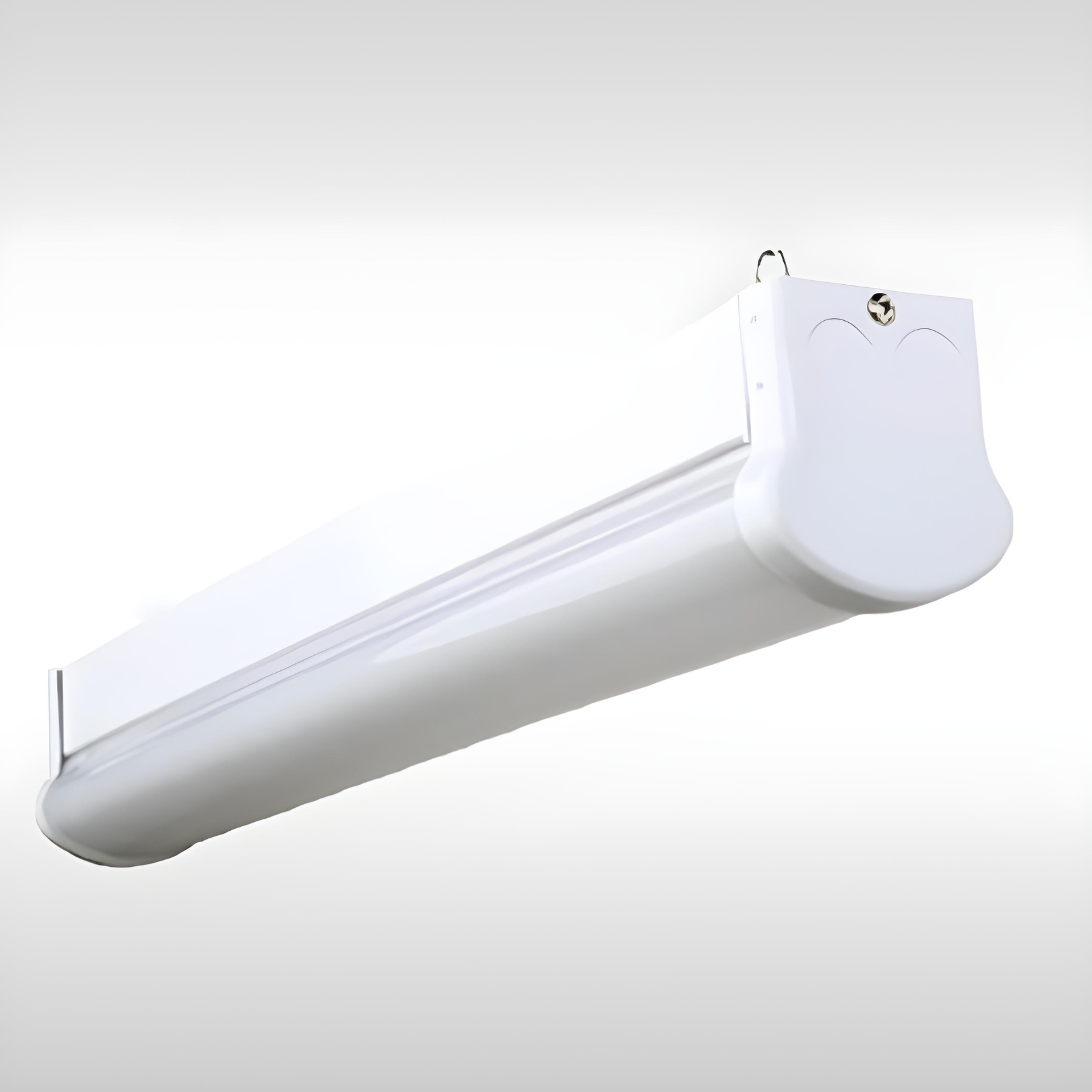

LED STRIP FIXTURE

SIZE 4 ft, 8 ft
WATT 24W, 32W, 40W
CCT 3500K / 4000K / 5000K
DIMMABLE 0-10V
CRI 80+
LUMINOUS EFFICIENCY (Lm/W) 130 lm/w
INPUT VOLTAGE 100 – 277 VAC
OPERATING TEMPERATURE -15.5OC ~ 50OC
PH 0.9
LIFE SPAN 50,000+ Hrs

Description

Schaezer presents the LED Strip Fixture, a state-of-the-art lighting solution engineered for efficiency and reliability in various commercial and industrial settings. This STRIPS/LOWBAYS fixture features a PC frosted lens and flicker-free 0-10V dimming, along with motion and PIR sensors for enhanced functionality and emergency backup for added safety. With an impressive lifespan of over 50,000 hours, it ensures long-term performance and low maintenance.

The LED Strip Fixture operates on an input voltage range of 100-277 VAC and offers selectable color temperatures of 3500K, 4000K, and 5000K. With a luminous efficacy of 130 Lm/W and a high Color Rendering Index (CRI) of 80+, it delivers clear and bright illumination. The fixture supports 0-10V dimming, features a power factor of 0.9, and performs reliably in temperatures ranging from -15.5°C to 50°C.

Ideal for warehouses, garages, stairwells, storage areas, and damp or harsh environments, the LED Strip Fixture provides versatile and efficient lighting solutions. Its robust design and advanced features make it suitable for demanding applications where durability and performance are crucial.

Backed by a 5-year limited warranty and compliant with ETL and DLC Premium Listings, the LED Strip Fixture ensures quality and safety standards are met. Choose Schaezer’s LED Strip Fixture for a reliable, high-performance STRIPS/LOWBAYS lighting solution tailored to modern industrial and commercial needs.

Application

This fixture is widely used at warehouses, garages, stairwells, storageareas, and damp or harsh environments

Quick Ship:

TK-LBS3-4FT-24WD(35K-40K-50K)-A-T
TK-LBS3-4FT-32WD(35K-40K-50K)-A-T
TK-LBS3-4FT-40WD(35K-40K-50K)-A-T
